Planetary Steering Axle（front Axles）for 180-220HP 4WD Tractor(1)
Rated Output Torque：1700kgm
Max.Output Torque:3400kgm
Rated Load :4050kg Planetary ratio:6.923

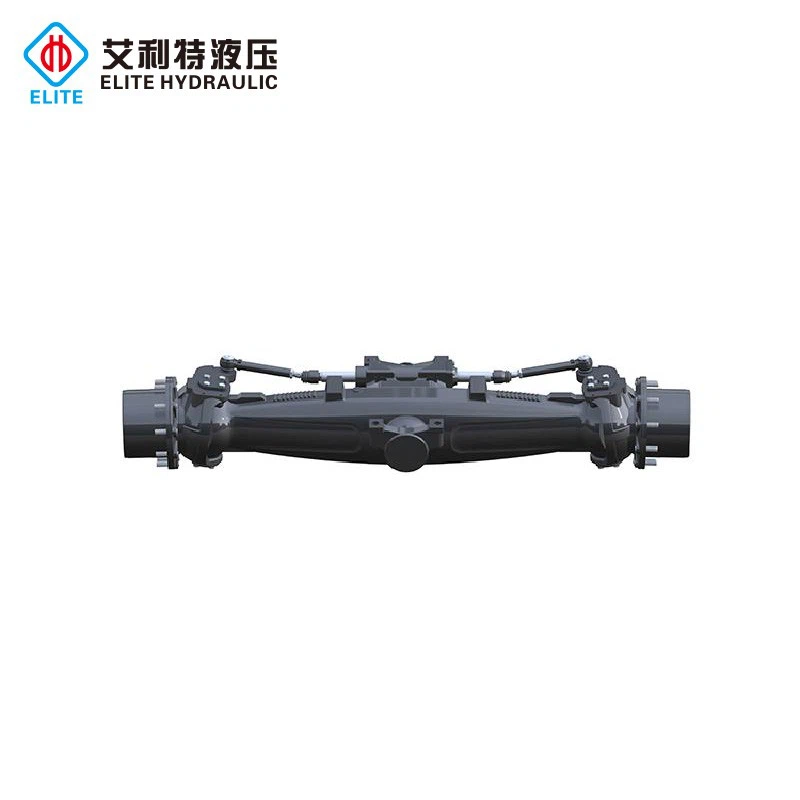

Planetary Steering Axle(front Axles)for 180-220HP 4WD Tractor fits 180-220 horsepower 4WD tractors. It can handle high torque with a rated output of 1700 kg·m and a maximum output of 3400 kg·m. The rated load is 4050 kg.
The Planetary Steering Axle(front Axles)for 180-220HP 4WD Tractor drive shaft is positioned in the center for stable power transmission. The hub connects firmly with 10 bolts of M20×1.5 size. The front axle has 1.5° camber, 7° introversion, and 6° retroversion angles to improve stability and handling.
The steering angle adjusts up to 55°, and the swing angle is 11° on each side for rough terrain. And steering cylinder is in the center, with a diameter of 75 mm and a stroke of 276 mm, making steering responsive. Net weight is 406 kg, strong yet light, suitable for 180-220HP tractors.
Drawing
Products picture
Products specification
|
Planetary steering axle(front axles)for 180-220HP 4WD tractor HA40 |
|
|
Driving ratio |
20.769 |
|
Driving shaft |
Central-positioned shaft |
|
Hub connection bol |
10-M20×1.5(Φ280×Φ335mm) |
|
Distance between spokes(mm) |
1940 |
|
Input shaft parameter |
DP16 z=21 |
|
Front camber |
1.5° |
|
Introversion angle |
7° |
|
Retroverted angle |
6° |
|
Toe-in |
0-5 |
|
Steering type |
Front steering |
|
Swing angle |
11°(Each side) |
|
Steering angle |
55°(Adjustable) |
|
Steering cylinder |
Central-positioned cylinder |
|
Cylinder diameter(mm) |
Φ75 |
|
Stroke(mm) |
276 |
|
Net weight |
406 |
