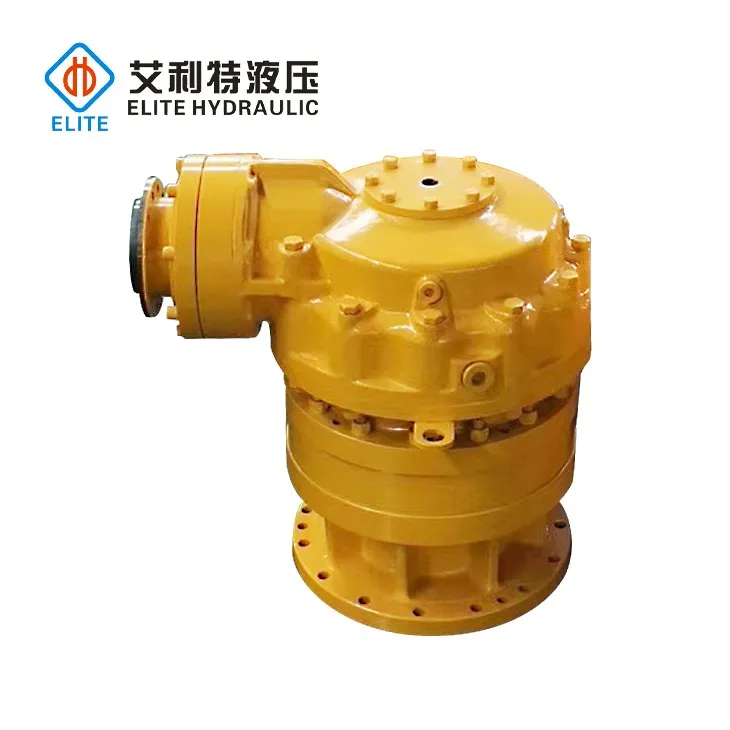

Twin Shaft Planetary Gearboxes
The Twin Shaft Planetary Gearboxes are cutting-edge solution designed to meet the diverse needs of modern industrial applications. With the unique double horizontal synchronized shafts, the Twin Shaft Planetary Gearboxes produce a helicoidal flow, making it ideal for a wide range of tasks, from waste shredding to countercurrent homogeneous mixing of concrete in ready mix plants.
Feature
- High torque for heavy mixing
Max torque up to 90 000 Nm handles dense, sticky mixes.
- Stable ratios, high efficiency
Common ratios of 23.5:1, 27:1, and 64:1 keep speed steady and save energy.
- Twin-motor input
Two motors from 2 × 15 kW to 2 × 110 kW give strong and even power.
- Easy replacement
Mounting size matches Bonfiglioli models, so swap is fast and low-cost.

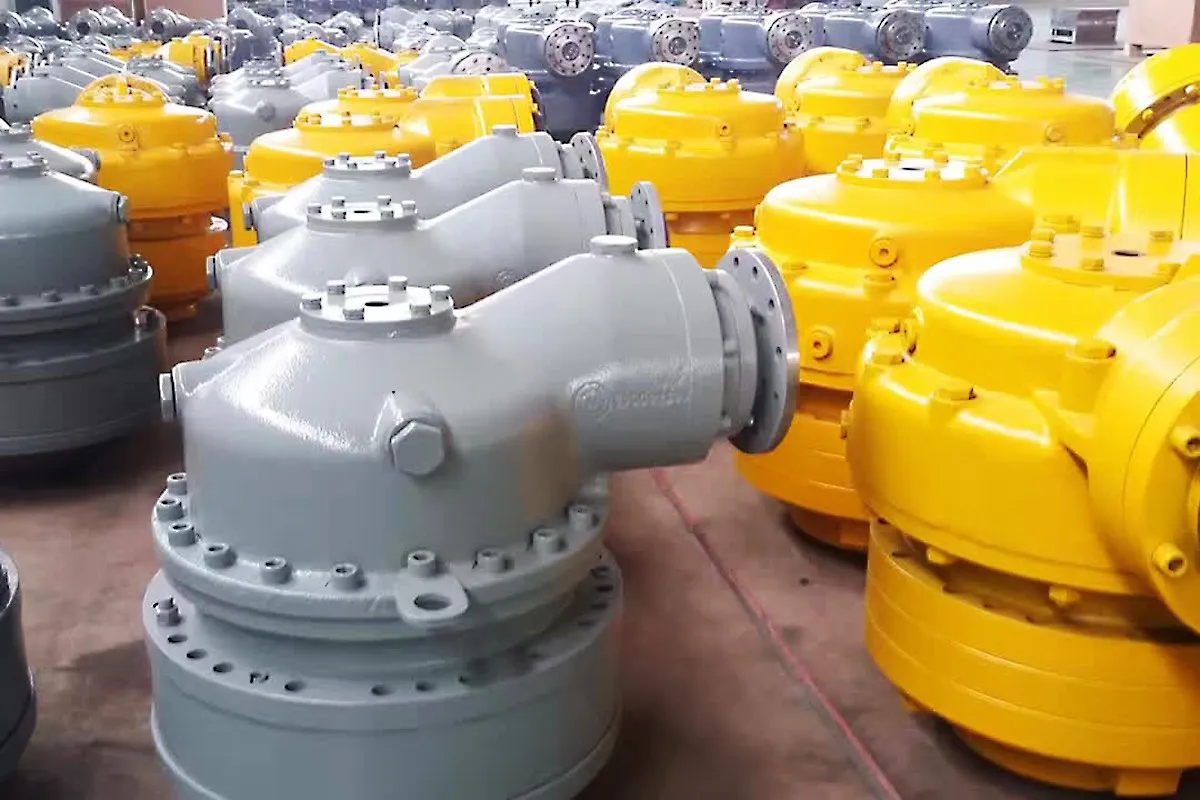

Products Photo
Products Specifications
|
MODEL |
MAX OUTPUT TORQUE |
RANGE OF RATIO |
ELECTRIC MOTOR POWER |
MIXER CAPACITY |
INTERCHANGEABLE MODEL |
|
Nm |
1: |
Kw |
m³ |
||
|
R306 |
8000 |
23.5 |
2*15 |
0.5 |
|
|
R307 |
12500 |
23.5 |
2*22 |
1 |
Bonfiglioli 307 |
|
R309 |
18000 |
23.5 |
2*30 |
1-2 |
Bonfiglioli 309 |
|
R310 |
26000 |
27 |
2*37 |
2-3 |
Bonfiglioli 310 |
|
R311 |
40000 |
27 |
2*55 |
3-4.5 |
Bonfiglioli 311 |
|
R313 |
50000 |
27 |
2*75 |
4.5-6 |
Bonfiglioli313 |
|
R315 |
90000 |
64 |
2*110 |
6-9 |
Bonfiglioli 315 |
