The Concrete Mixer Truck Gearbox is an important part. It connects the hydraulic motor and the mixer drum. By changing high speed and low torque into low speed and high torque, the Concrete Mixer Truck Gearbox helps the drum turn steadily. Using planetary gears, it stays compact, strong, and efficient. Suitable for various conditions, the Concrete Mixer Truck Gearbox ensures smooth operation and even mixing of concrete.
Concrete Mixer Truck Gearbox
High performance with Lower Cost
Quickly delivery within 30 days (standard models).
Interchangeable with ZF p4300,P5300,P7300;PMP PMB6,PMB6.5,PMB7,PMB7.1;
Bonfiglioli 575,577,580
Feature
- High torque capacity
- High load capacity
- Tilting output flange, evenly in all directions
- Mounting frame for water tank
- Water pump P.T.O.
- Speed sensor
- Applicable hydraulic motors
- Axial piston motors to SAE Standard orbit motors

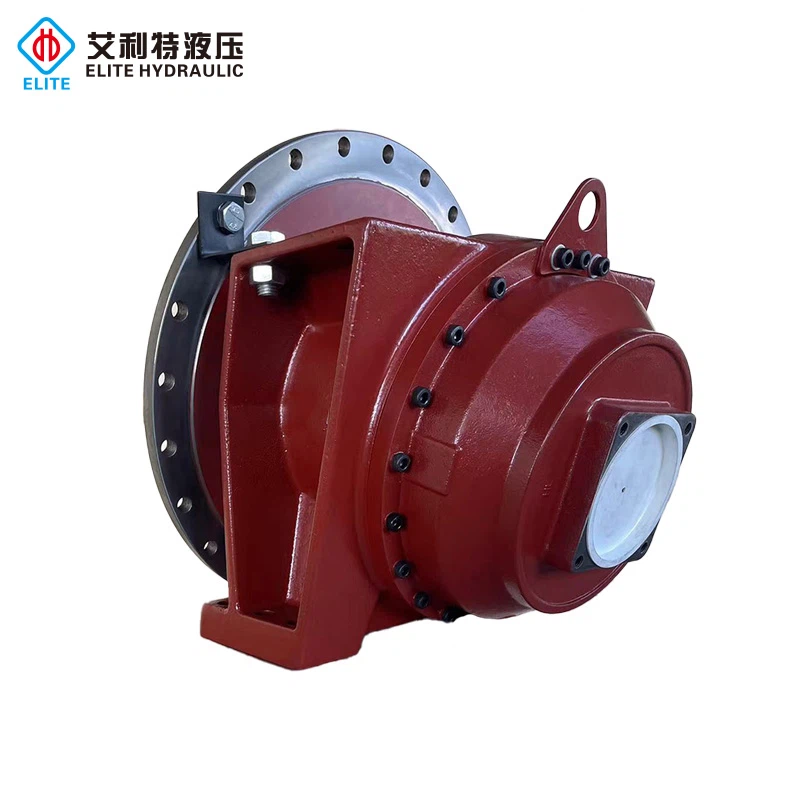

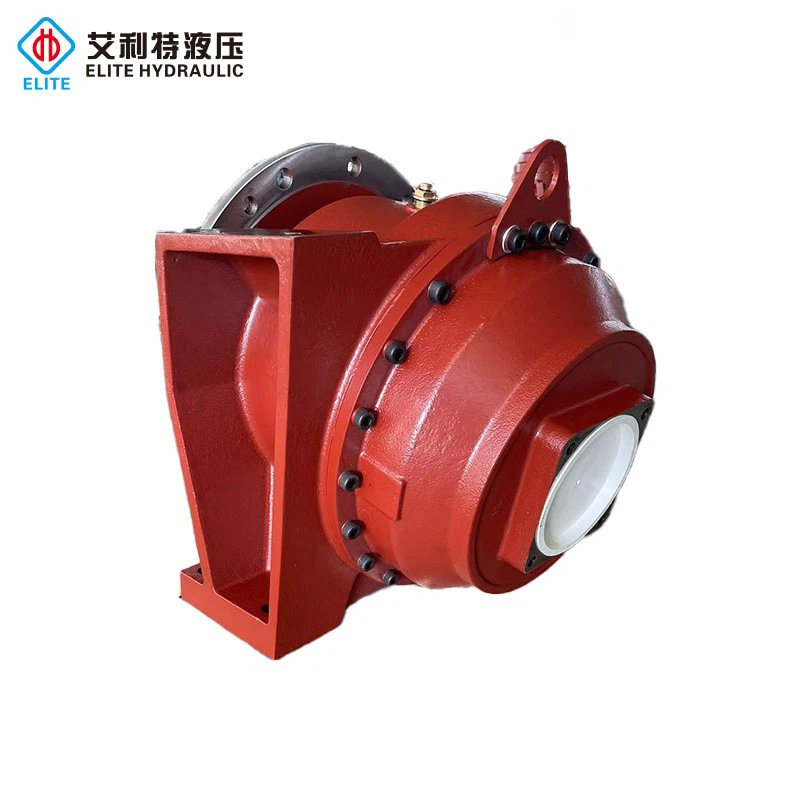

Products Photo



Products Specifications
|
MODEL |
MAX OUTPUT TORQUE |
RANGE OF RATIO |
MAX.INPUT SPEED |
LOW SPEED. MOTOR |
HIGH SPEED MOTOR |
WATER PUMP PTO |
DRUM CAPACITY |
INTERCHANGEABLE MODEL |
|
Nm |
1: |
rpm |
m³ |
|||||
|
HYT10 |
10000 |
9,26 |
600 |
√ |
1-2 |
Bonfiglioli 565 |
||
|
HYT24 |
24000 |
29 |
800 |
√ |
2-3 |
Bonfiglioli 568 |
||
|
HYT30 |
30000 |
101, 132 |
2500 |
√ |
3-4 |
Bonfiglioli 567 HS HSM4 |
||
|
HYT36 |
36000 |
103 |
2500 |
√ |
5-6 |
|||
|
HYT42 |
42000 |
103 |
2500 |
√ |
6-7 |
|||
|
HYT50 |
50000 |
134 |
2500 |
√ |
8 |
Bonfiglioli 575 ZF P3301 HS HSM5 ZTS PM51 PMP PMB6 SAUER TMG51.2 |
||
|
HYT54 |
54000 |
133 |
2500 |
√ |
9-10 |
ZF P4300 PMP PMB6.5 |
||
|
HYT60 |
60000 |
135 |
2500 |
√ |
√ |
10-12 |
ZF5300 HS HSM6 ZTS PM62 ZTS PMC 60 PMP PMB7.1 SAUER TMG61.2 |
|
|
HYT72 |
72000 |
123, 144 |
2500
|
√ |
√ |
12-14 |
ZF7300 HS HSM7 ZTS PM72 ZTS PMC72 PMP PMB7.5 SAUER TMG71.2 |
|
|
HYT100 |
100000 |
141 |
2500 |
√ |
16-20 |
PMP PMB7.8 PMP PMB8 |
