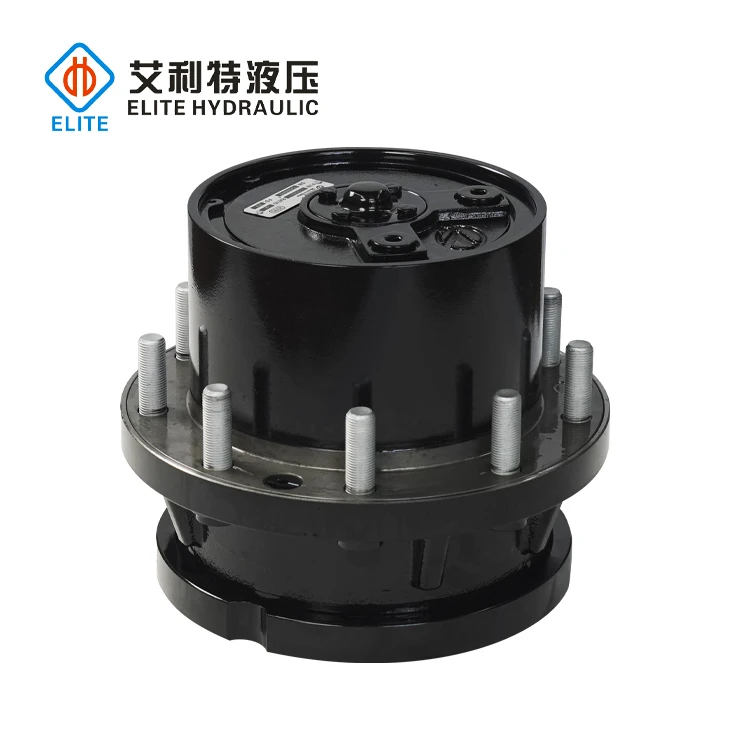

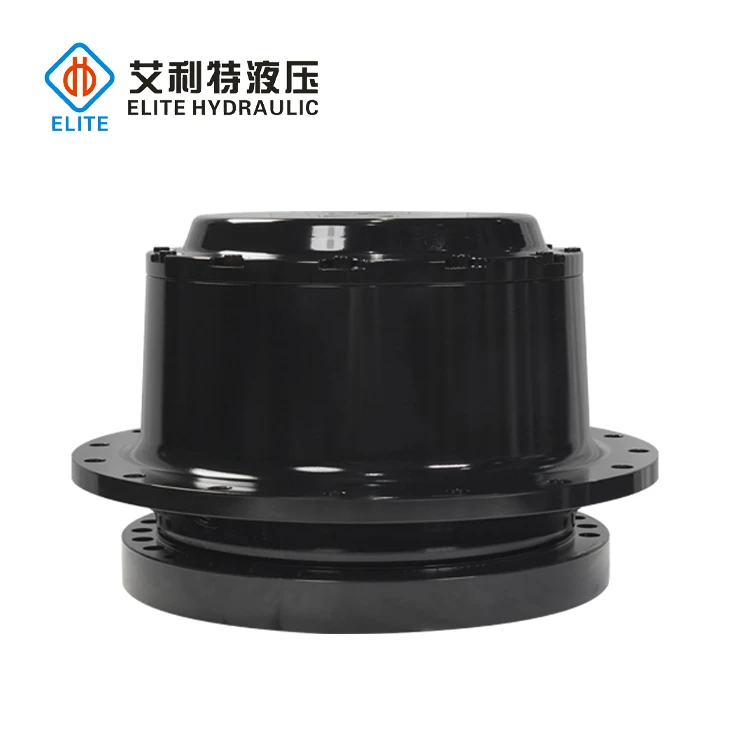

Planetary Gearbox For Sale
The Planetary Gearbox For Sale delivers a maximum output torque of 7000 N·m and a rated torque of 3500 N·m, making it well-suited for heavy-duty and continuous high-load operations.Planetary Gearbox For Sale supports input speeds of up to 4000 rpm and offers multiple gear ratios-18, 25, 32, 38, 48, 55, 57-to meet various speed and torque conversion requirements, ensuring adaptability across a wide range of working conditions.
The Planetary Gearbox For Sale is widely used in applications such as rotary drilling rigs, agricultural crawler vehicles, and soil compactors, making it an ideal choice for both engineering and agricultural drive systems requiring high torque and robust load-bearing capability.
Application
Products Specifications
| Model | HFT007T2B |
| Max. output torque. | 7000 N.m |
| Rated output torque. | 3500 N.m |
| Input speed | up to 4,000 rpm |
| Ratio: | 18,25,32,38,48,55,57 |
| Brake options | Hydraulically released parking brake on request |
| Dynamic Loading: | 132KN |
| Static Loading: | 277 KN |
| MODEL | MAX OUTPUTTURQUE | RANGE OF RATIO | MAX. INPUT SPEED | ORBITALHYD.MOTOR | HYDRAULIC PISTONMOTOR | OILQUANTITY | WEIGHT | INTERCHANGEABLE MODEL |
| NM | 1: | rpm | L | kg | ||||
| HFTO03 | 3000 | 6,8,32 | 4000 | √ | √ | 1-1.3 | 35-55 | Bonfiglioli601R1 Bonfiglioli7020 RR RRWD200 RR RRWD270 RR RRWD300 RR RRTD300 RR RRTD100 |
| HFTO05 | 5000 | 5-55 | 4000 | √ | √ | 1-1.3 | 50 | BrevIni CTD2050 RR RML793 Bonfiglioli 603W Bonfiglioli 703C 0mni VB04RR RRWD500D |
| HFTO07 | 7000 | 11-57 | 4000 | √ | √ | 1-1.1 | 50 | PMP PMR 680 Rexroth 8105E RRWD600D Brevini 402 0mni VB07 Fairfield 7HP Bonfiglioli 603W |
| HFTO10 | 10000 | 25-63 | 4000 | √ | √ | 1.5 | 56-63 | 0&K F10 Brevini CTD2010 Bonfiglioli 605W Bonfiglioli 705C RR RRWDSOOD RR RRT80ODRR RRTD1000D Rexroth 8110E PMP PMR 780 Comer PGR 802T |
| HFTO11 | 13000 | 26-59 | 4000 | √ | 2 | 80 | Fairfield 11HP0mni VBll Rexroth 8120EO&K F13 PMP PMR 1100PMP PMR 1200 AuburnGear Model 110CD | |
| HFTO17 | 17000 | 26-141 | 4000 | √ | 2.5 | 90 | Rexroth GFT17 Bonfiglioli 7060 Brevini CTU3150 Brevini 703 RR RRWD1700DOmni VB18 O&KF20 RR RRTD1700TFairfield CW18 Fairfield CW12Comer PGR-1702/3T Comer PGR-1702/3WAuburnGear Model 161CD AuburnGear Model 160CD |
|
| HFT020 | 20000 | 27-51 | 4000 | √ | 2.5-3 | 105 | Rexroth GFT17 Bonfiglioli 706C Brevini CTU3150 Brevini 703 RR RRWD1700D Omni VB18 PMP PMR 2000 |
|
| HFT024 | 24000 | 44-170 | 4000 | √ | 2.5-3 | 105-120 | Rexroth GFT2 RR RRTD1701T Rexroth 8130 PMP PMC 2000 Bonfiglioli 7070 Brevini CTU3200 Brevini 703 Omni VB18 RR RRTD2400T Comer PGR-2502/3T Comer PGR-2502/3W O&K F30 |
|
| HFTO26 | 26000 | 26-62 | 4000 | √ | 3.5-4 | 140 | Rexroth GFT26 Fairfield CT26 |
|
| HFTO30 | 30000 | 23-42 | 4000 | √ | 5 | 120 | Rexroth 8144E | |
| HFTO34 | 34000 | 51 | 4000 | √ | 5 | 140 | Rexroth GFT34 | |
| HFTO36 | 36000 | 12-173 | 4000 | √ | 5 | 140-170 | Rexroth GFT36 Bonfiglioli 709CBonfiglioli 710C0&K F40 RR RRTD3600TPMP PMC 3000 Fairfield CR31 Brevini CTU3300 Comer PGR-3602/3T Comer PGR-3602/3W |
