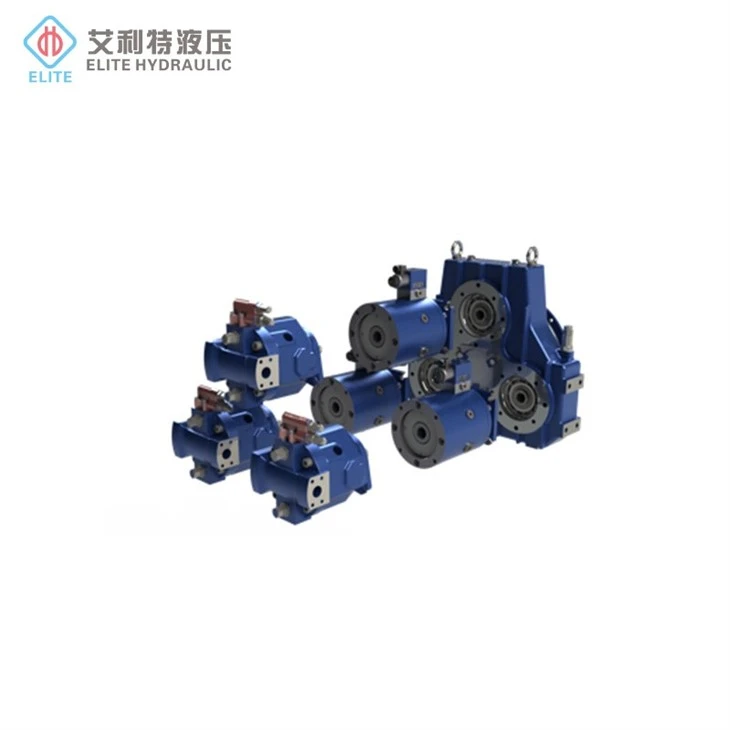

Hydraulic Pump Splitter Drive

    The Hydraulic Pump Splitter Drive is a high-performance gearbox designed for heavy-duty hydraulic systems. Hydraulic Pump Splitter Drive transfers power from one input to multiple hydraulic pumps. And is suitable for mining machines, drilling rigs, construction equipment, and mobile hydraulic units.



    Supports single, double, triple, or four-pump drive. At the same time offers high input power, strong torque, and flexible ratio options. Works well in tough working conditions where stable hydraulic power is needed.





• Built for Multi-Pump Hydraulic Systems
  Specially designed for machines that require multiple hydraulic outputs, such as mining trucks, drilling rigs, and heavy-duty mobile equipment.One gearbox drives up to four pumps, making system layout more compact and efficient.



• Handles Heavy Loads with Ease

    Supports up to 1000 kW input power and 4000 Nm torque per pump. Suitable for high-pressure, high-flow hydraulic systems in demanding environments.







类别	型号	额定输入功率 KW	最大输入扭矩 N·m	最高输入转速 rpm	最大单泵输出功率	最大单泵输出扭矩	输出类型SAE泵接口尺寸	重量 Kg	速比范围
Category	Model	Input Power(Kw)	Max.Input Torque(Nm)	Max.Input Speed(Rpm)	Max.Power Per Output(Kw)	Max.Torque Per Output(Nm)	Pump Adapter Size	Weight	Ratio
Single Pump Drive	HFTPD1203	350	1900	2300	350	1900	A~F	120	0.68-1.45
Single Pump Drive	HFTPD1228	400	2500	2500	400	2500	A~F	140	0.5-2.0
Double Pump Drive	HFTPD2127	180	750	2350	100	350	A~C	93	0.7～1.4
Double Pump Drive	HFTPD2168	400	1500	2500	200	750	A~E	110	0.5～1.6
Double Pump Drive	HFTPD2203	530	2800	2500	280	1500	A~F	207	0.65～1.5
Double Pump Drive	HFTPD2235	700	3000	2200	360	1900	A~F	288	0.6～1.4
Triple Pump Drive	HFTPD3150	280	1400	2500	150	650	A~D	105	0.64～1.25
Triple Pump Drive	HFTPD3168	400	1500	2500	200	750	A~E	124	0.6～1.6
Triple Pump Drive	HFTPD3203	530	3000	2500	280	1500	A~F	220	0.65～1.3
Triple Pump Drive	HFTPD3235	700	3000	2200	360	1900	A~F	335	0.67～1.4
Triple Pump Drive	HFTPD3288	1000	6500	2100	400	4000	A~F	490	0.67～1.07
Four Pump Drive	HFTPD4184	210	1250	2600	150	1035	A~D	180	0.64～1.0
Four Pump Drive	HFTPD4203	530	3000	2300	280	1500	A~F	260	0.69～1.0
Four Pump Drive	HFTPD4235	700	3000	2200	360	1900	A~F	435	0.55～1.4
Four Pump Drive	HFTPD4288	1000	6500	2100	400	4000	A~F	530	0.64～1.0
